Description
The Yamaha DXS15 mk3 is a 15" powered band-pass subwoofer from Yamaha's DXS mk3 series, designed to pair with DXR mk3 loudspeakers. A 15" long-excursion Yamaha driver with a 3" voice coil is powered by a 2500W Class-D amplifier, delivering up to 133dB maximum SPL across a 35Hz–140Hz frequency range. The plywood cabinet has a scratch-resistant polyurea coating for regular transport and installation.
Features
- 2500W (peak) / 1250W (RMS) Class-D amplifier
- Band-pass enclosure with large-diameter ports to reduce wind noise
- 96kHz DSP with D-XSUB presets, including XTENDED LF mode
- Flexible crossover settings and cardioid mode for bass control

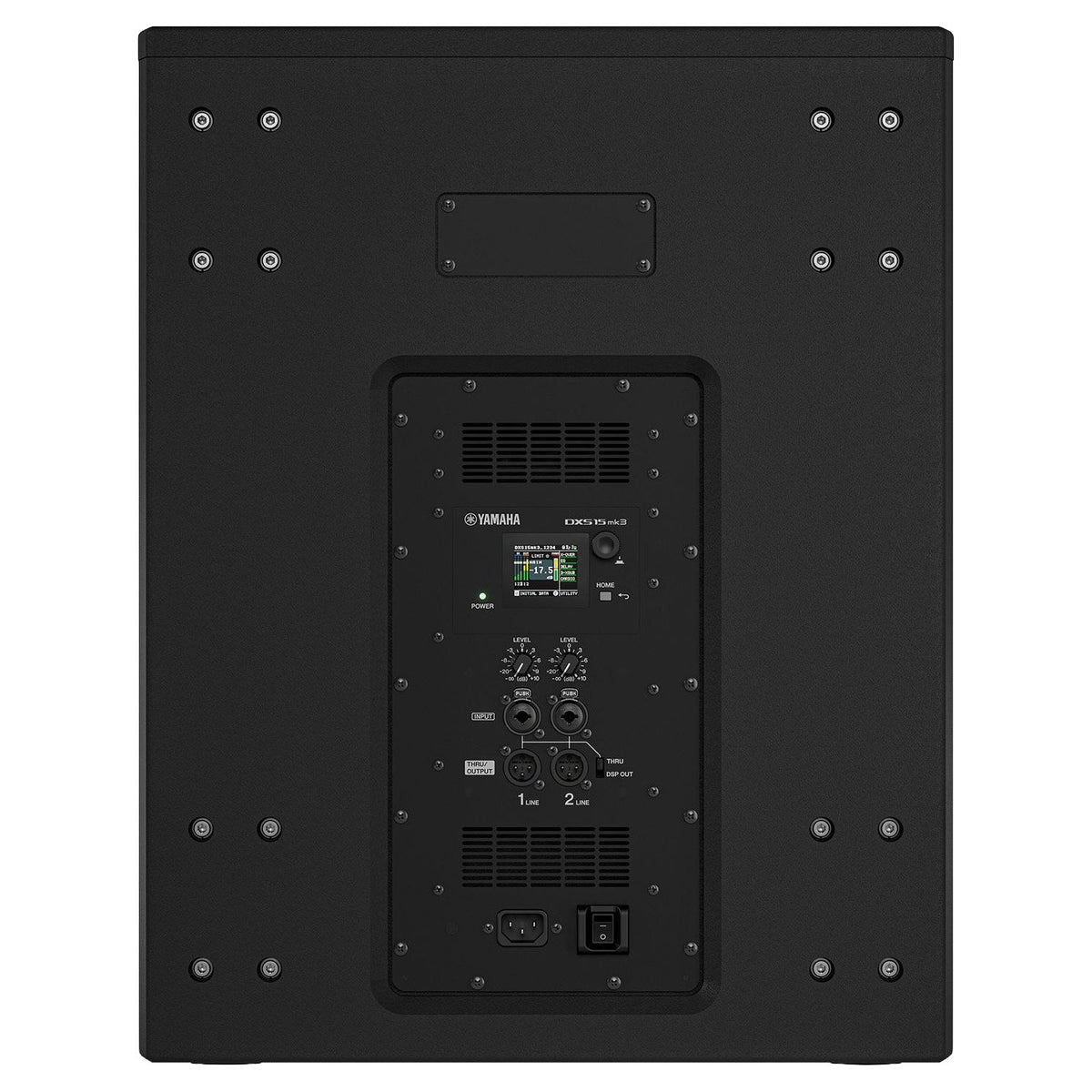

- Rear LCD panel and encoder; stores up to eight user presets
- Factory presets for use with DXR mk3 loudspeakers
- D-Remote app control over Bluetooth (iOS and Android)
- Optional cover (SPCVR-DXS153) and casters (SPW-1)
Specifications
- Type
- Powered band-pass subwoofer
- LF Driver
- 15" cone, 3" voice coil
- Frequency Response (-10dB)
- 35Hz–140Hz
- Maximum SPL
- 133dB
- Amplifier
- Class-D, 2500W (peak) / 1250W (RMS)
- DSP
- 32-bit / 96kHz
- Inputs
- XLR/TRS combo x2
- Outputs
- XLR x2 (thru or DSP out)
- Pole Socket
- 35mm, M20 threaded
- Cabinet
- Plywood, black polyurea coating
- Dimensions (W x H x D)
- 480 x 611 x 614mm (18.9" x 24.1" x 24.2")
- Net Weight
- 37.0kg / 81.6 lbs
Product Info
| SKU | YAM-DXS15MKIII |
|---|---|
| Series | Yamaha DXS mk3 |
